Using Custom Node Item Templates

This topic explains how to customize the data displayed in the Org Chart nodes using a custom Node Item Template. This is done through configuring the ItemTemplate property of the OrgChartNodeLayout class. This property specifies a custom template for the content of the nodes mapped by the Node Layouts.

Note
Note:

The code in the Steps section uses the Org Chart created in the Adding xamOrgChart to Your Application topic.

Preview

Following is a preview of the final result, generated through the custom Node Item Template created and configured in the Steps section below:

xamOrgChart Using Custom Node Item Templates 01.png

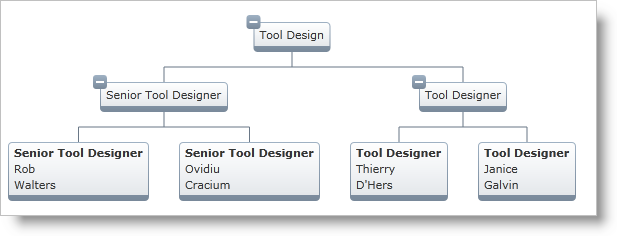

Figure 1: Org Chart generated by the custom Note Item Template used in this topic

Steps

  1. Create a Data Template:

In XAML:

<DataTemplate x:Key="EmployeeTemplate">
    <StackPanel>
        <TextBlock Text="{Binding JobTitle}" FontWeight="Bold" />
        <TextBlock Text="{Binding FirstName}" />
        <TextBlock Text="{Binding LastName}" />
    </StackPanel>
</DataTemplate>

  1. Configure the ItemTemplate.

Set the ItemTemplate of the desired Node Layout object to be the Data Template:

In XAML:

<ig:OrgChartNodeLayout
    TargetTypeName="Employee"
    ItemTemplate="{StaticResource EmployeeTemplate}" />
